EMC
- EMC
- About EMC
What is EMC?
EMC (Electro Magnetic Compatibility)
- Testing available at Dongan ElectronicsEMI (Electro Magnetic Interference)
- RE
(Radiated Emission) - CE
(Conducted Emission)
- EMS (Electro Magnetic Susceptibility)
- RS
(Radiated Susceptibility) - CS
(Conducted Susceptibility)
- EMC
- Electromagnetic Compatibility, representing the balance and compliance of both EMI and EMS performance.
- EMI
- Disturbance caused by the emission or radiation of electromagnetic waves.
- EMS
- Immunity or tolerance against electromagnetic interference.

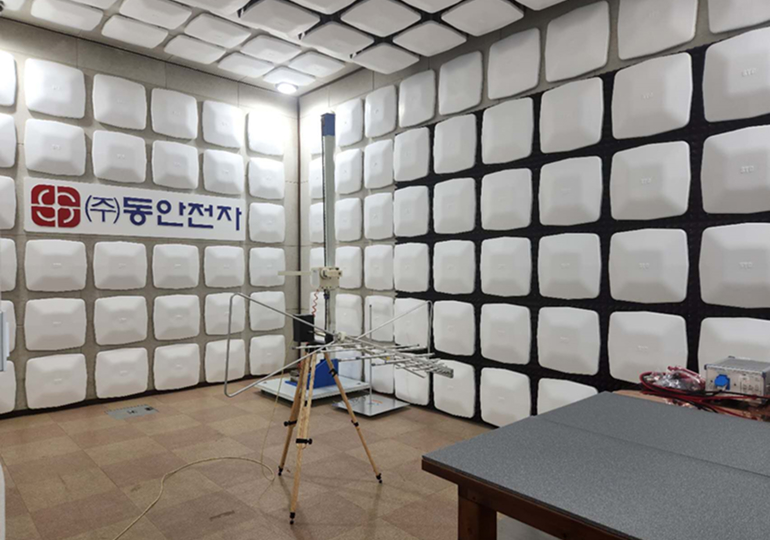

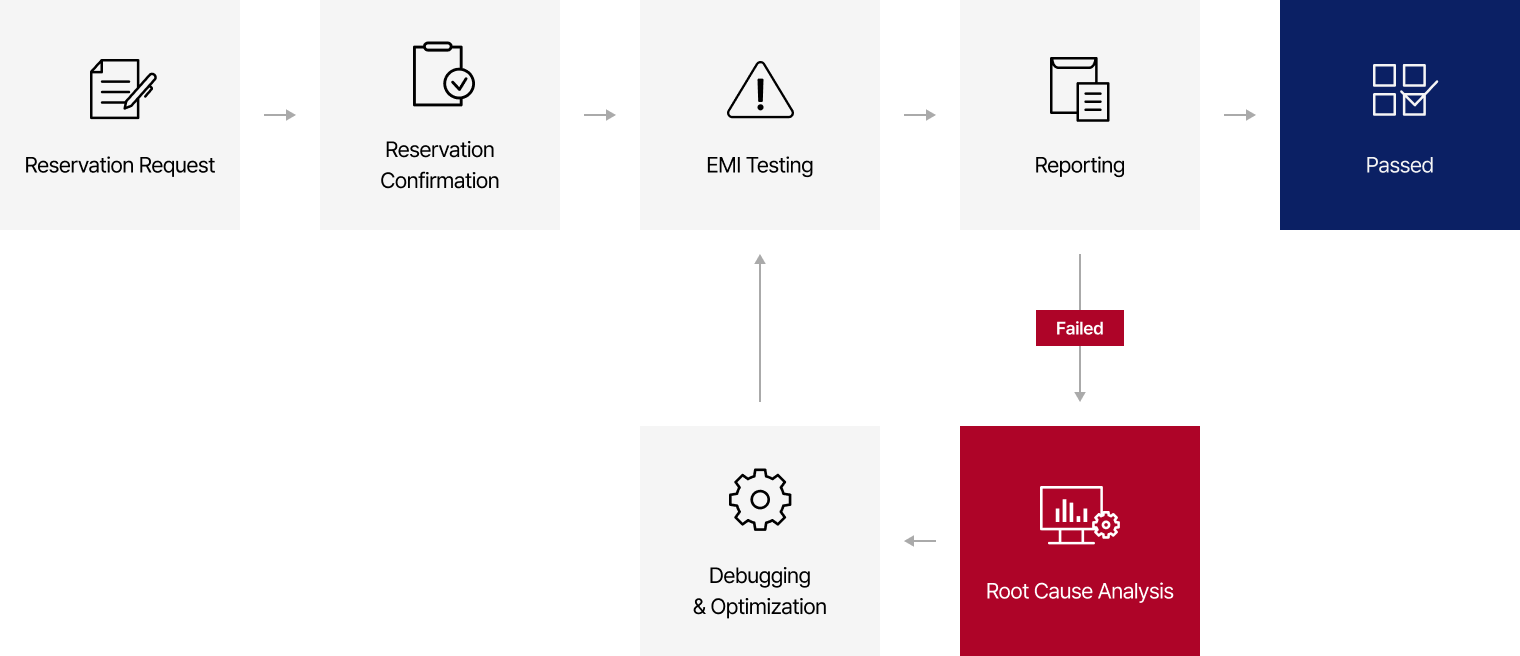

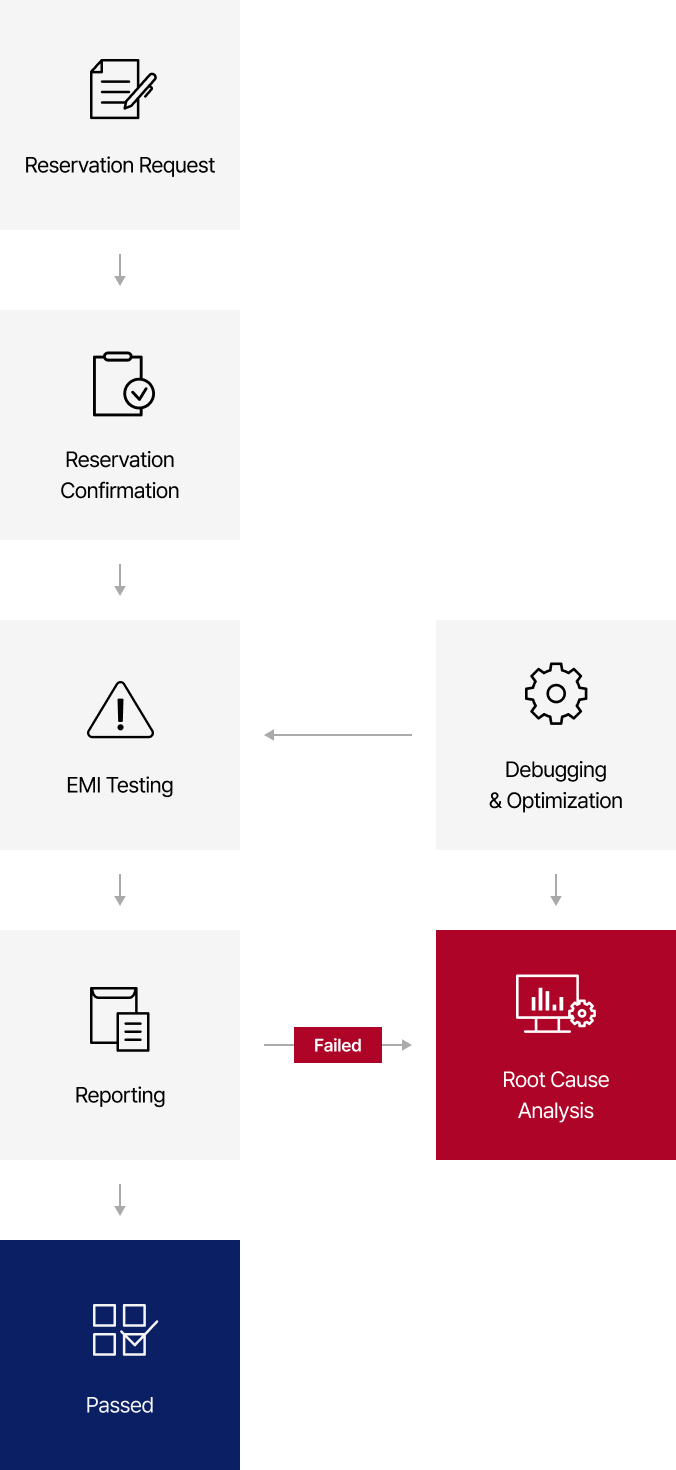

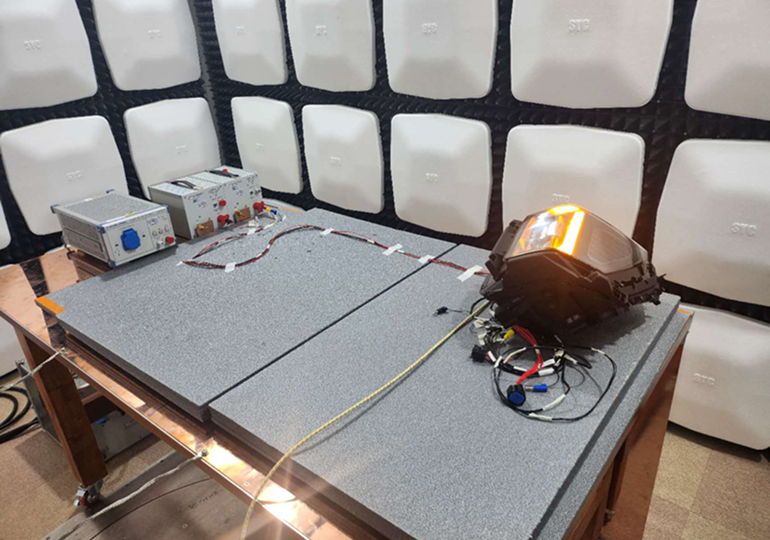

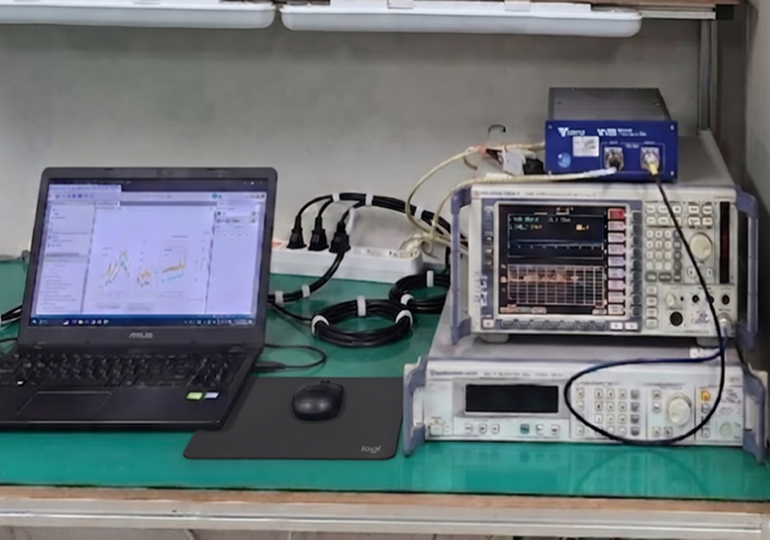

EMI Chamber service
EMI Chamber Spec.
Testing available for ES96200-00, CISPR, ISO11452, IEC61000, etc.
- Direct Current (DC) Type
-
Radiated Emission : 9kHz ~ 3GHz
Conducted Emission(Voltage method) : 100kHz ~ 150MHz
Conducted Emission(Current method) : 9kHz ~ 245MHz
- Alternating Current (AC) Type
-
Radiated Emission : 9kHz ~ 3GHz
Conducted Emission(Voltage method) : 9kHz ~ 30MHz
Conducted Emission(Current method) : 9kHz ~ 245MHz
- Power source
-
DC : 0V ~ 1,000V/200A Max.
AC : 220V/16A Max.
