- Power Magnetics
※ 좌우로 스와이프 하시면 내용을 확인하실 수 있습니다.
| Image | Datasheet | Features | Series | LxW size(mm) |
Height size(mm) |
Inductance(uH) | DCR(mΩ) | ISAT(A) | IR(A) | Operating Temperature(°C) |
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Wire WoundShield
|
SPIS070-30 | 7.5 x 7.5 Max. | 3.7 Max. | 10 | 68 Max. | 5.5 Typ. | 4.5 Typ. | -55°C ~ +155°C |
 |
|
Wire WoundFerrite Core
|
TSL7345 | 7.5 x 7.5 Max. | 4.5 Max. | 3.3 ~ 100 | 20 ~ 480 Max. | 1 ~ 5.4 Typ. | 0.83 ~ 4.1 Typ. | -50°C ~ +165°C |
 |
|
Wire WoundFerrite Core
|

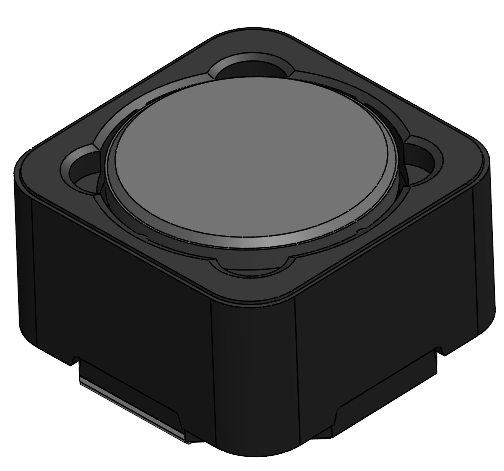

TSL1280 | 12.7 x 12.7 Max. | 8 Max. | 3.3 ~ 680 | 10.4 ~ 1,124 Max. | 1.7 ~ 25.6 Typ. | 0.95 ~ 11 Typ. | -50°C ~ +165°C |
 |
|
Wire WoundFerrite Core
|
BSL1080 | 10.7 x 10.7 Max. | 8 Max. | 1 ~ 1,000 | 10.2 ~ 1,944 Max. | 1.3 ~ 40 Typ. | 0.7 ~ 11 Typ. | -50°C ~ +165°C |
 |
|
Shield
|
BSH1590 | 15.5 x 15.5 Max. | 9 Max. | 1.5 ~ 47 | 2.6 ~ 56.4 Max. | 6.4 ~ 33 Typ. | 5.1 ~ 21.8 Typ. | -50°C ~ +150°C |
 |
|
Wire WoundShield
|
SPI040-12 | 4.75 x 4.45 Max. | 1.2 Max. | 0.15 ~ 4.7 | 9 ~ 195 Max. | 2.2 ~ 15 Typ. | 1.8 ~ 7.5 Typ. | -55°C ~ +155°C |
 |
|
Wire WoundShield
|
SPI040-20 | 4.75 x 4.45 Max. | 2.0 Max. | 0.1 ~ 15 | 4 ~ 410 Max. | 1.8 ~ 22 Typ. | 1.4 ~ 13 Typ. | -55°C ~ +155°C |
 |
|
Wire WoundShield
|
SPI050-18 | 5.75 x 5.4 Max. | 1.8 Max. | 0.47 ~ 10 | 9 ~ 155 Max. | 3 ~ 15.5 Typ. | 2.5 ~ 10.5 Typ. | -55°C ~ +155°C |
 |
|
Wire WoundShield
|
SPI050-30 | 5.75 x 5.4 Max. | 3.0 Max. | 0.1 ~ 22 | 3 ~ 248 Max. | 2.3 ~ 30 Typ. | 1.7 ~ 25 Typ. | -55°C ~ +155°C |
 |
|
Wire WoundShield
|
SPI070-12 | 7.3. x 6.8 Max. | 1.2 Max. | 1 ~ 4.7 | 30 ~ 103 Max. | 3.6 ~ 6 Typ. | 2.6 ~ 5 Typ. | -55°C ~ +155°C |
