- EMC Components
※ 좌우로 스와이프 하시면 내용을 확인하실 수 있습니다.
| Image | Datasheet | Features | Series | LxW size(mm) |
Height size(mm) |
Impedance(Ω) | Inductance(uH) | DCR(mΩ) | IR(A) | Operating Temperature(°C) |
|---|---|---|---|---|---|---|---|---|---|---|
 |
 |
Wire WoundFerrite CoreShieldSMD
|
CMFP3225S | 3.4 x 2.7 Max. | 2.35 Max. | 500 ~ 1,000 | 100 Max. | 1.5 ~ 2.0 Max. | -40°C~+125°C | |
 |
|
Wire WoundFerrite CoreShieldSMD
|
CMFP3225 | 3.4 x 2.7 Max. | 2.35 Max. | 80 ~ 1,000 | 120 ~ 350 Max. | 0.35 ~ 1 Max. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreUnshieldedDIP
|
F2D-UFGUBC-200170 | 20 x 18.5 Max. | 17 Max. | 3,300 ~ 51,000 | 410 ~ 5,250 Max. | 0.15 ~ 0.65 Typ. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreShieldSMD
|
CMFP3225 | 3.4 x 2.7 Max. | 2.35 Max. | 80 ~ 1,000 | 120 ~ 350 Max. | 0.35 ~ 1 Max. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreUnshieldedDIP
|

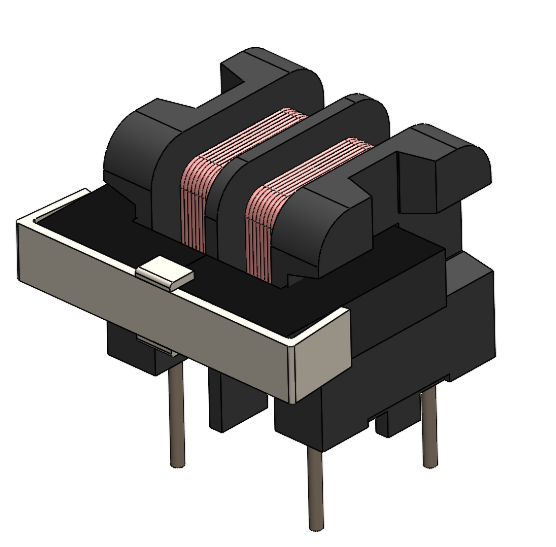

F2D-UFGUBC-165130 | 15 x 16.5 Max. | 13 Max. | 470 ~ 30,000 | 65 ~ 2,950 Max. | 0.11 ~ 1 Typ. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreShieldSMD
|
CMFP4532 | 4.7 x 3.4 Max. | 3 Max. | 80 ~ 800 | 50 ~ 240 Max. | 1 ~ 3 Max. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreUnshieldedDIP
|
F2D-UFGUBC-185205 | 17 x 18.5 Max. | 20.5 Max. | 3,300 ~ 51,000 | 410 ~ 5,250 Max. | 0.15 ~ 0.65 Typ. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreShieldSMD
|
CMFP4532H | 4.7 x 3.4 Max. | 3 Max. | 90 ~ 2,800 | 50 ~ 350 Max. | 0.9 ~ 4 Max. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreUnshieldedDIP
|

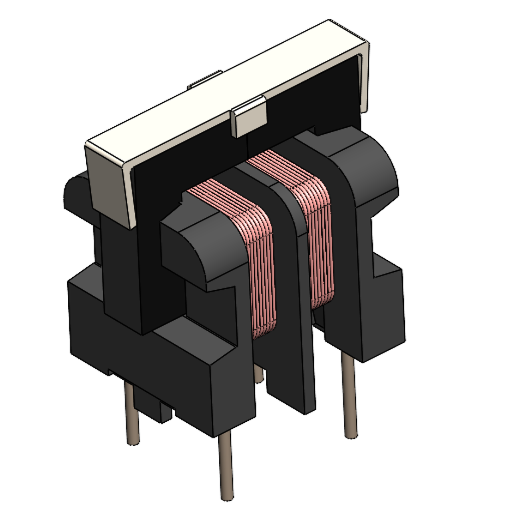

F2D-UFGUBC-165165 | 11 x 16.5 Max. | 16.5 Max. | 470 ~ 30,000 | 65 ~ 2,950 Max. | 0.11 ~ 1 Typ. | -40°C ~ +125°C | |
 |
|
Wire WoundFerrite CoreShieldSMD
|
CMFP7060 | 7.6 x 6.5 Max. | 3.8 Max. | 70 ~ 1,300 | 5 ~ 21 Max. | 2.5 ~ 15 Max. | -40°C ~ +125°C |
